Takeoff Toolhead!π
Takeoff Toolhead + Jupiter - 1/20/2025
Summary: What a crazy toolhead!
WTFIITFB??? π

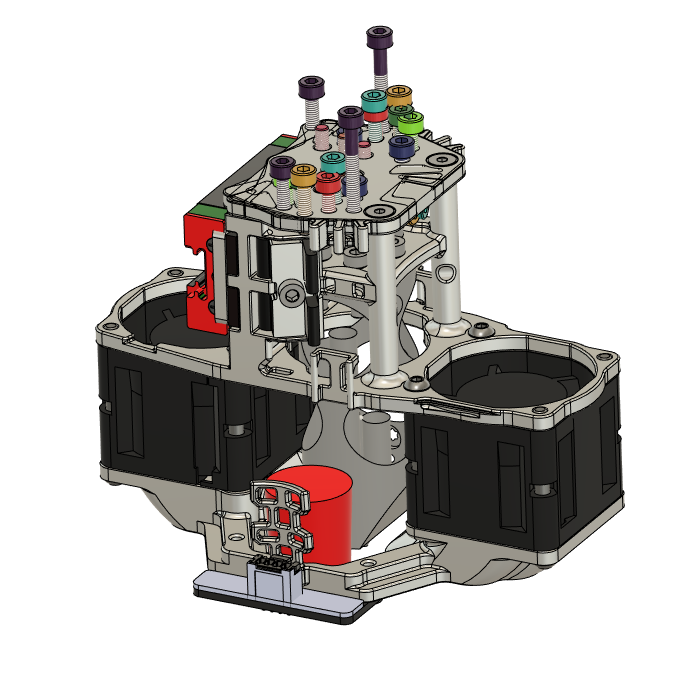

- Takeoff Toolhead
-
- SLM printed toolhead for voron & voron compatible platforms
- Github for installation notes https://github.com/Kizime123/Takeoff-Toolhead
- You received "Option A" for the top plate - will work nicely with your extruder we also provided
- Highly recommended to use the belt tensioner in the repo - will help you with pretensioning your belts as much as possible ahead of time. Its quite the process to get tensioned.
- Jupiter Toolboard
-
- See Linky here for more info ο»Ώπ Jupiter Toolboardο»Ώ
- LGX Lite Pro
- Not just a lite - the regular lite sucks, the lite pro is pretty amazing.
- Many torque, 5 positions of tension. Bolts from the bottom.
- Dual 3628 Fans
- FFB03612EHNYCL
- Red - 12V
- Black - DC-
- Blue - Tach
- Yellow - PWM Control
- Chube Air
- Comes with 120w 48v Heater
- Comes with PT1000
- Standard V6 nozzle insert installed
- Beacon Rev H
- Odds and Ends
- More 9mm belts
- USB+Canbus Cable
Potential Hiccups π¨
- 24v might not be happy with this version
- Belt tensioning might be hard
- Currently is bug in Kalico requiring firmware restart after print end
Kalico Time! π Kalico
