Torquing Chalice Heatbreak

All Chube Hotends use the Chalice Heatbreak. Chube Air and Chube Conduction Chalice installation will be exactly the same (with different heatblocks and meltzone adapters, but the same general idea).

Chube Compact also uses the Chalice Heatbreak, but does not have a meltzone adapter. It will be installed in the same way as Air and Conduction, but without needing to loosen or tighten a meltzone adapter during installation.

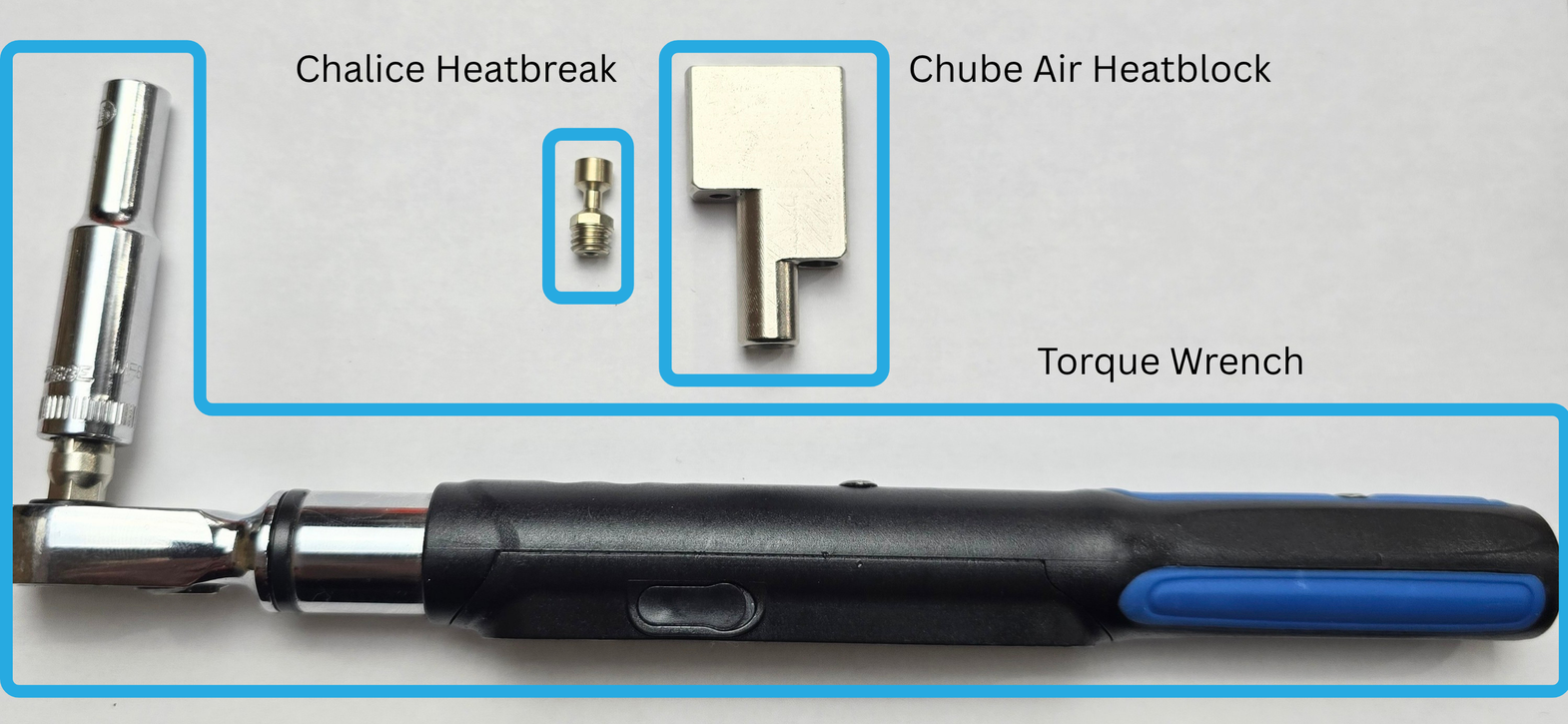

You will need:

1. Torque wrench
2. Chalice Heatbreak
3. Chube heatblock
4. Clamp

Step 2a:

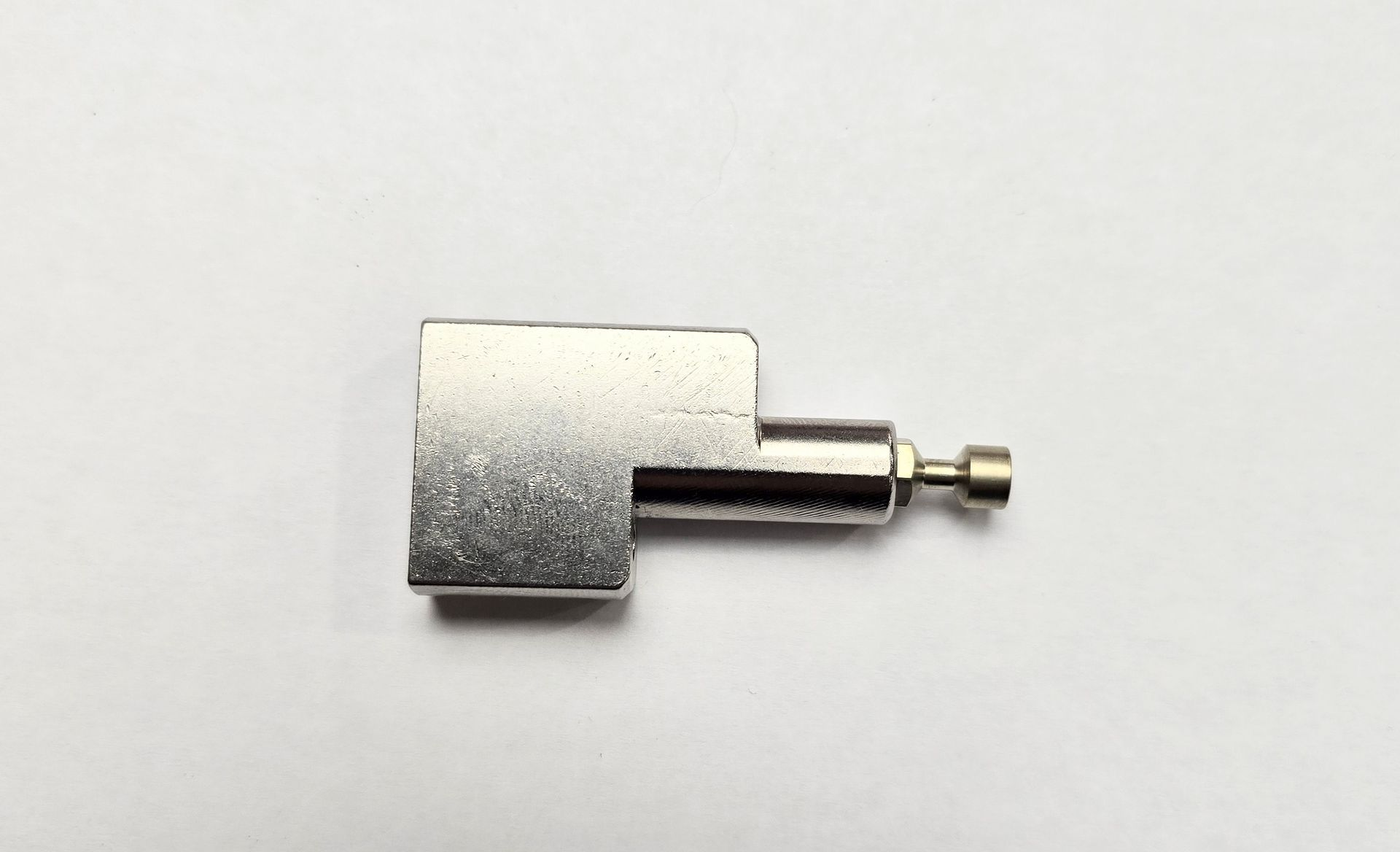

Take your Chalice, and gently finger twist as far as you can into the heatblock. Make sure to install in the location below:

If you were unable to completely screw your heatbreak in with your fingers, the torque wrench can help get the job done now!

Step 2b:

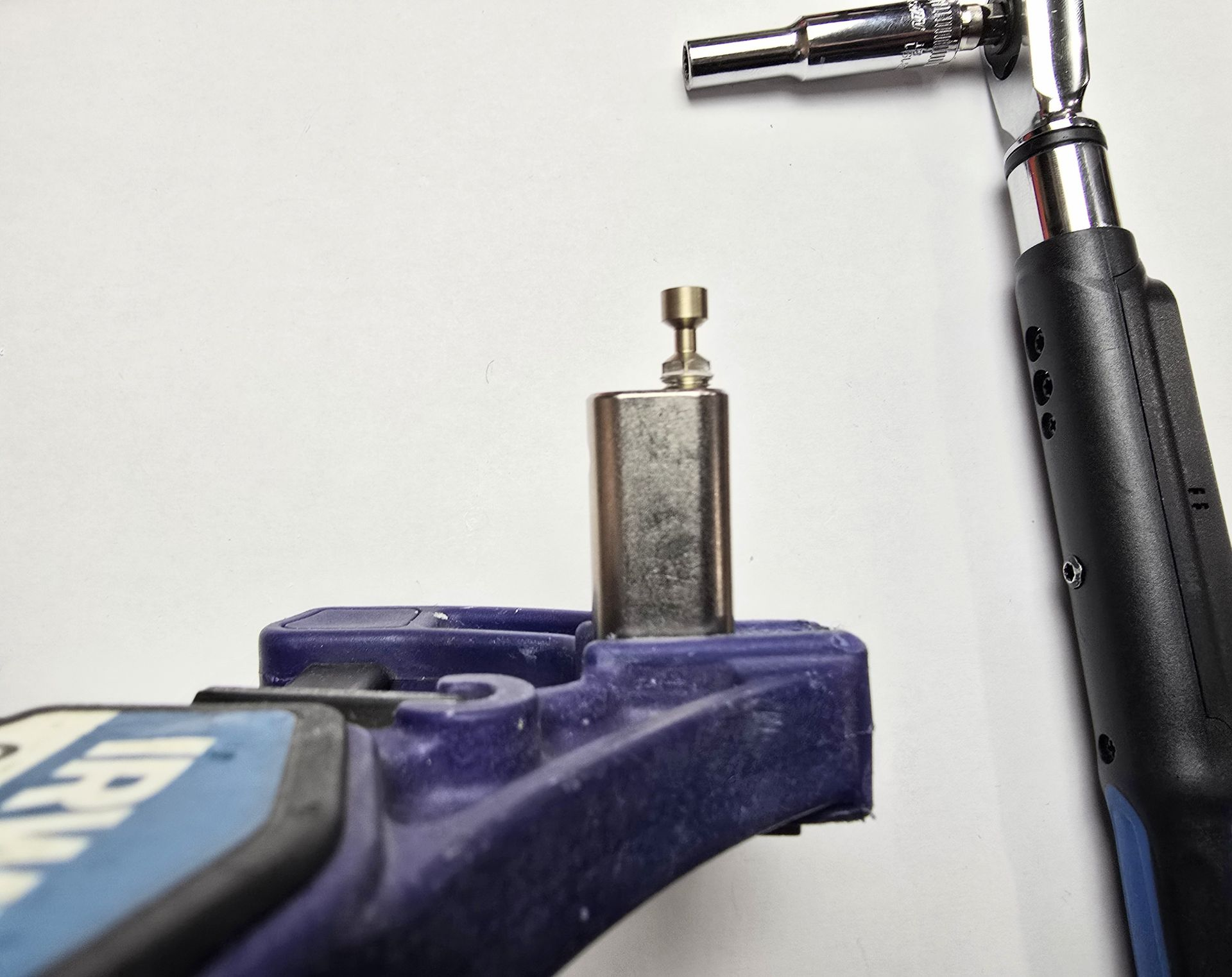

Take your clamp, and use it to hold the heatblock tight, the flat end of the block should be on a flat surface, such as a table.

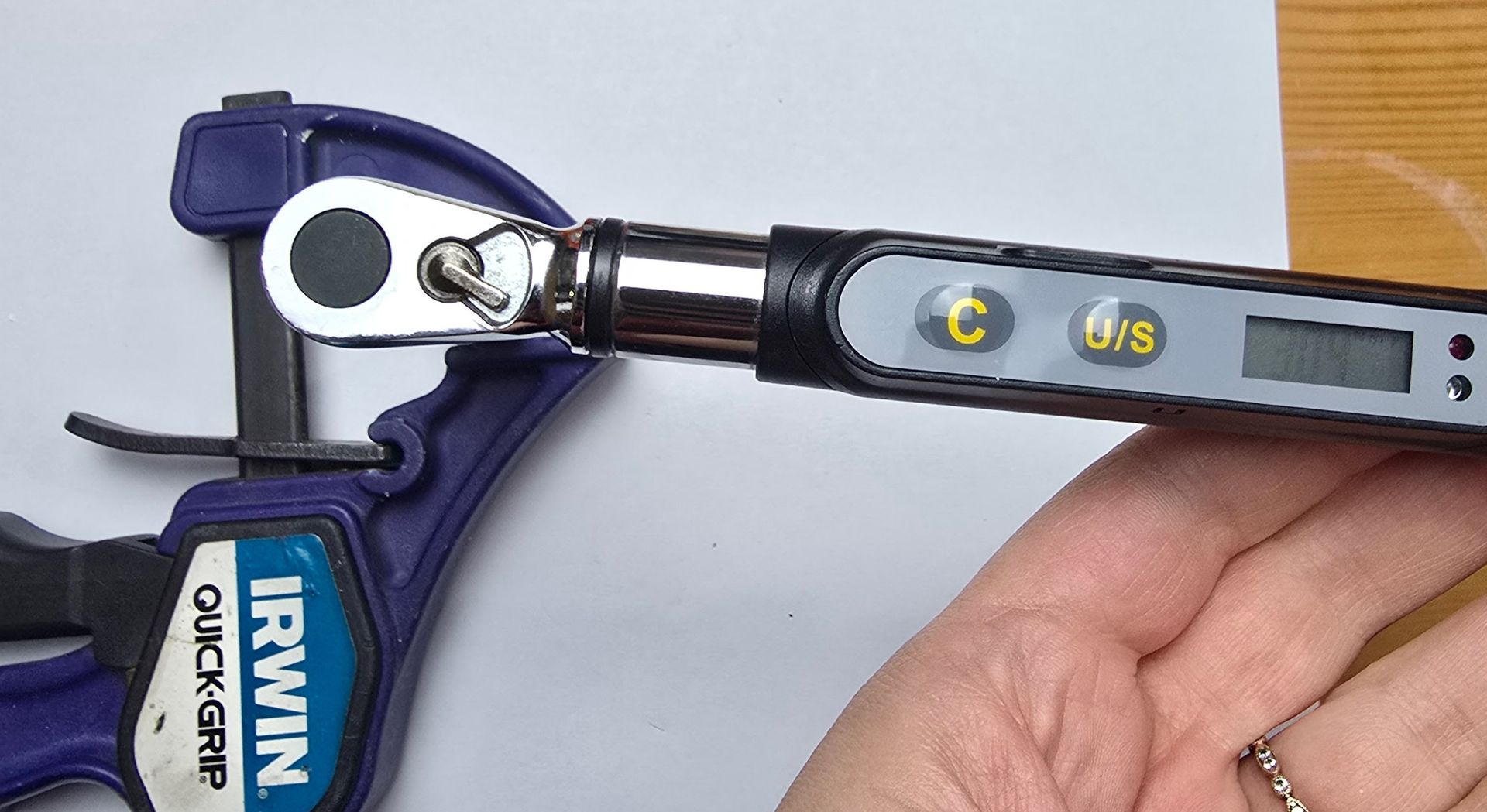

Next, use your torque wrench to tighten to 3Nm (Newton Meters).
